Eleveight WFS V3 2022 / 2023

Aile de Wingfoil WFS v3 Eleveight 2022-2023

Caractéristiques principales de la Eleveight WFS v3

Pour la V3, Eleveight à rendu la WFS plus rigide,  la caractéristique principale est la barre CS Wing qui offre un positionnement intuitif des mains et dispose désormais d'une nouvelle poignée en EVA pour plus de confort. Le placement amélioré des fenêtres vous permet de naviguer facilement et un contour optimisé offre une meilleure efficacité aérodynamique.

Freeride


Polyvalence

Cette aile de wingfoil peut être utilisée sur l'eau avec un SUP foil, un surf foil, un kite foil ou encore un wake foil. Elle peut aussi être utilisée sur terre avec un skate, un snowboard ou encore en ski.



Infos techniques de la Eleveight WFS v3

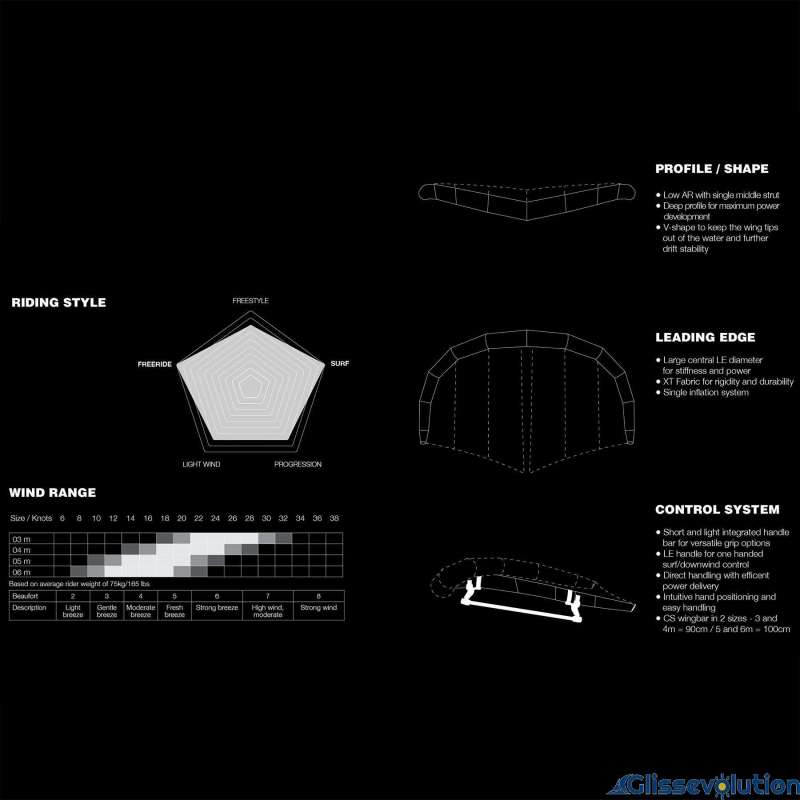

Tailles/Plage de vent de la Eleveight WFS v3

Lire le test de la v2 par Fanch ici

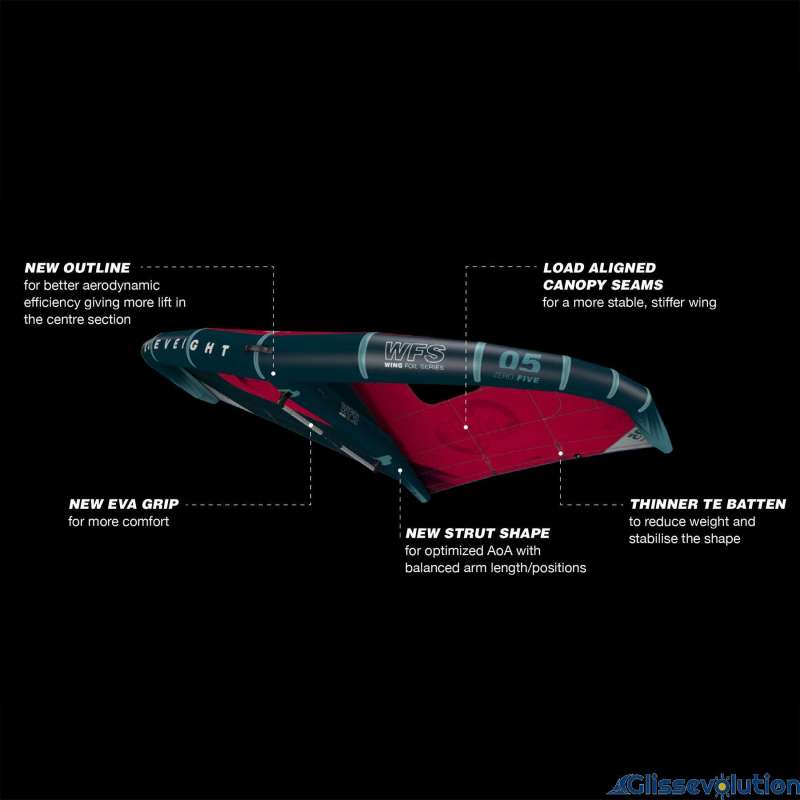

CHANGES FOR V3

• Deeper profile with a 2/3 infill panel and direct strut/canopy connection for
• increased power
• Centred weight distribution for drift stability
• New strut shape for optimized AoA with balanced arm length/positions
• Load aligned Canopy seams for a more stable, stiffer wing
• Thinner TE batten to reduce weight and stabilise the shape
• Reworked inflatable structure for improved dynamic stability
• Extra deflate valve on strut for faster deflation
• Improved window placement

PERFORMANCE FEATURES

• One strut performance freeride wing suited to all riders
• Design evolution with top materials tested the World over
• Stiff and lightweight with easy drift and power generation
• Rigid frame geometry for direct handling and direct power
• CS Wing Bar for intuitive hand positioning and easy handling

DESIGN VISION

The WFS v3 echoes the rapidly changing demands for a freeride wing unique in versatility and suited to all riding styles and levels. For V3, we’ve made the WFS stiffer, harnessing more power and engineered it to drift a lot easier. The core feature is the CS Wing bar which gives intuitive hand positioning and now features a new EVA bar grip for added comfort. The improved window placement allows you to navigate with ease, and an optimised outline offers better aerodynamic efficiency. The ultimate freeride capabilities of the WFS will outperform expectations pushing any rider to the next level.

CANOPY COMPOSITION :

• RIPSTOP FABRIC BY TEIJIN : Ultra high tenacity polyester yarn
• X4 RIPSTOP WEAVE : 4 x 4 Ripstop yarn with outstanding performance and Quality
• LATEST TEIJIN COATING : High temperature resin finish including UV filter

PERFORMANCE RESULTS :

LESS ELONGATION

● Less stretch in all directions (0°, 90° & +/- 45°)
● Results in precise and responsive flight characteristics

QUALITY RESULTS :

LONG LASTING QUALITY

● Extreme rip protection against peak loads, tears and punctures
● Less elastic fatigue
● Enhanced durability with less wear and tear
● Increased longevity

1 / Teijin Techno Force™ - X4 Ripstop canopy
The superior X4 Ripstop canopy is strong and tear resistant. It is made by Teijin Techno
Force™ in Japan and guarantees lasting performance.
2 / Double Bond Canopy
To ensure your kite can take a beating, every seam is glued and stitched for maximum durability.
3 / Quick Flow
The large diameter of the valve and strut connectors ensures easy and fast inflation and
deflation of your wing.
4 / German made PU Bladder Material
The toughest and lightest bladder material available, made in Germany.
5 / Load dynamic super seam
A triple reinforced closing seam along the leading edge makes it practically indestructible.
6 / 2 Window Panels
Strong and transparent PVC mateial it ensure best visibility
7 / Leash attachement
All our wings are delivered with a coiled hand leash
8 / Leading Edge Guards
Additional leading edge TPU reinforcements for further wear and tear protection.
9 / Wing bar
Light and stiff composite wing bar with two integrated attachement points on the LE
